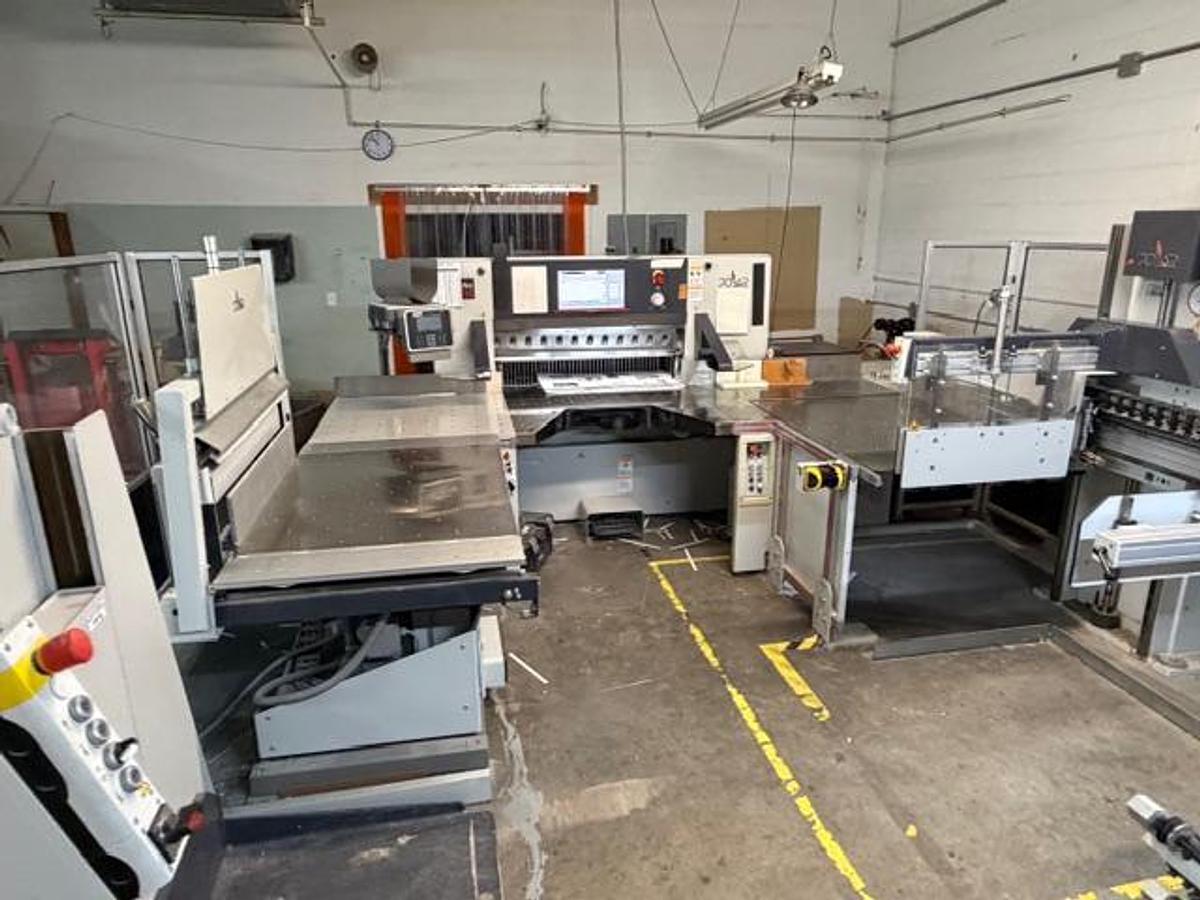

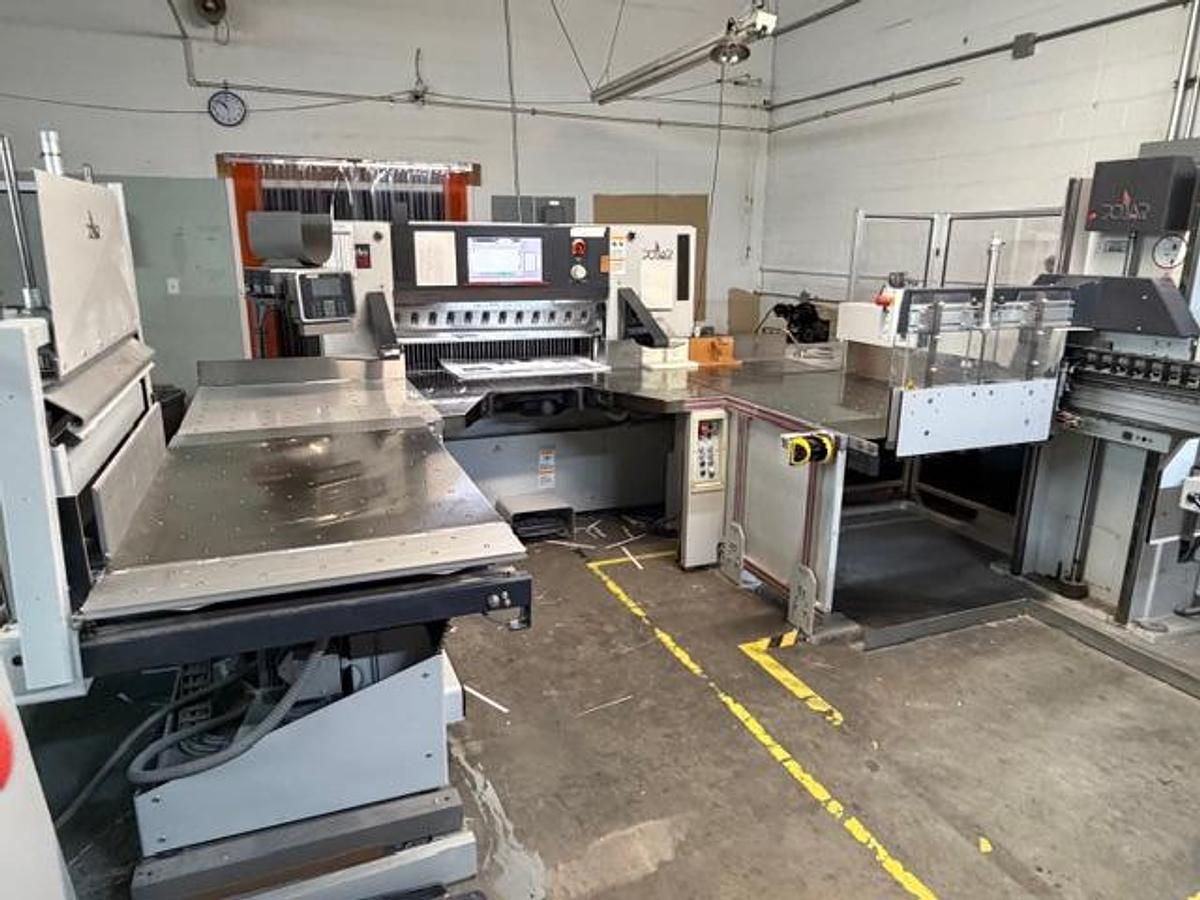

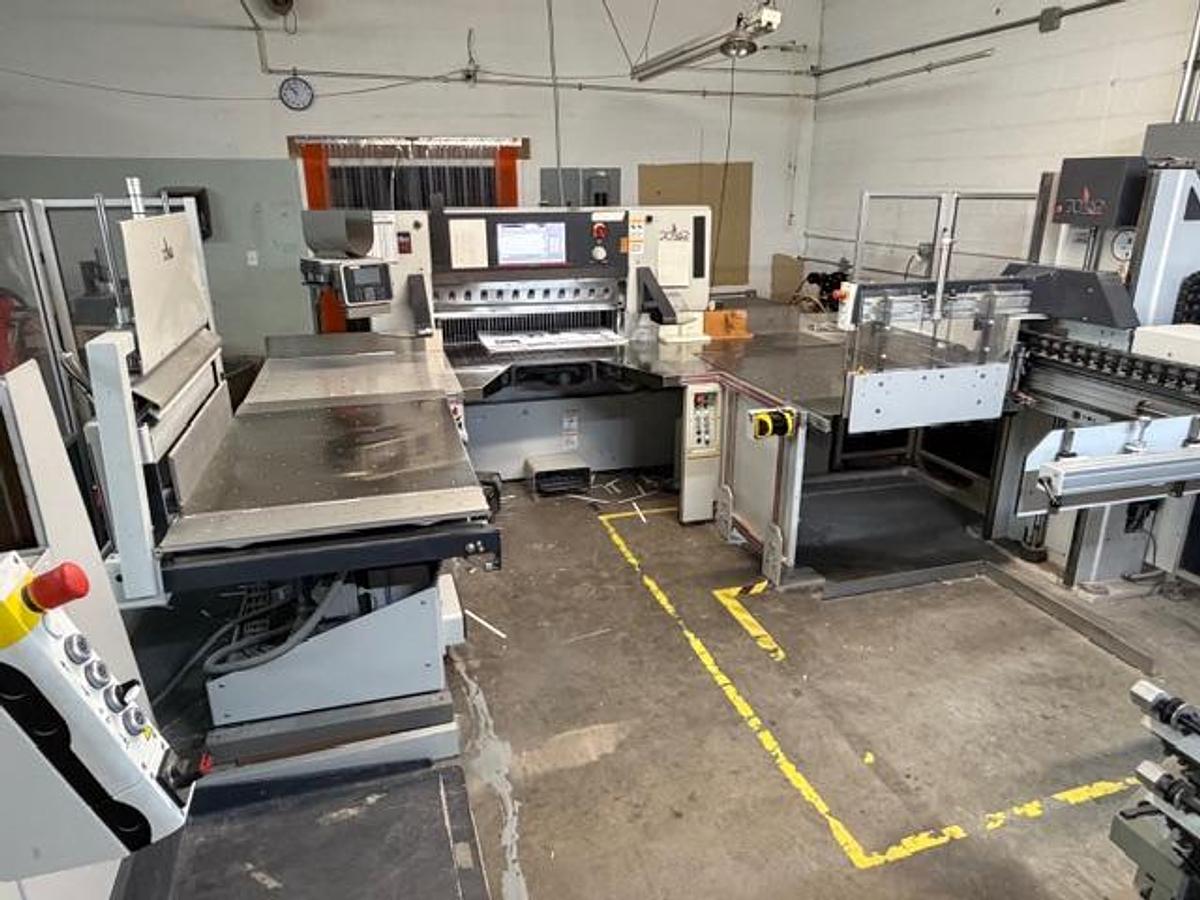

Used 2021/22 Polar Polar 115 full system

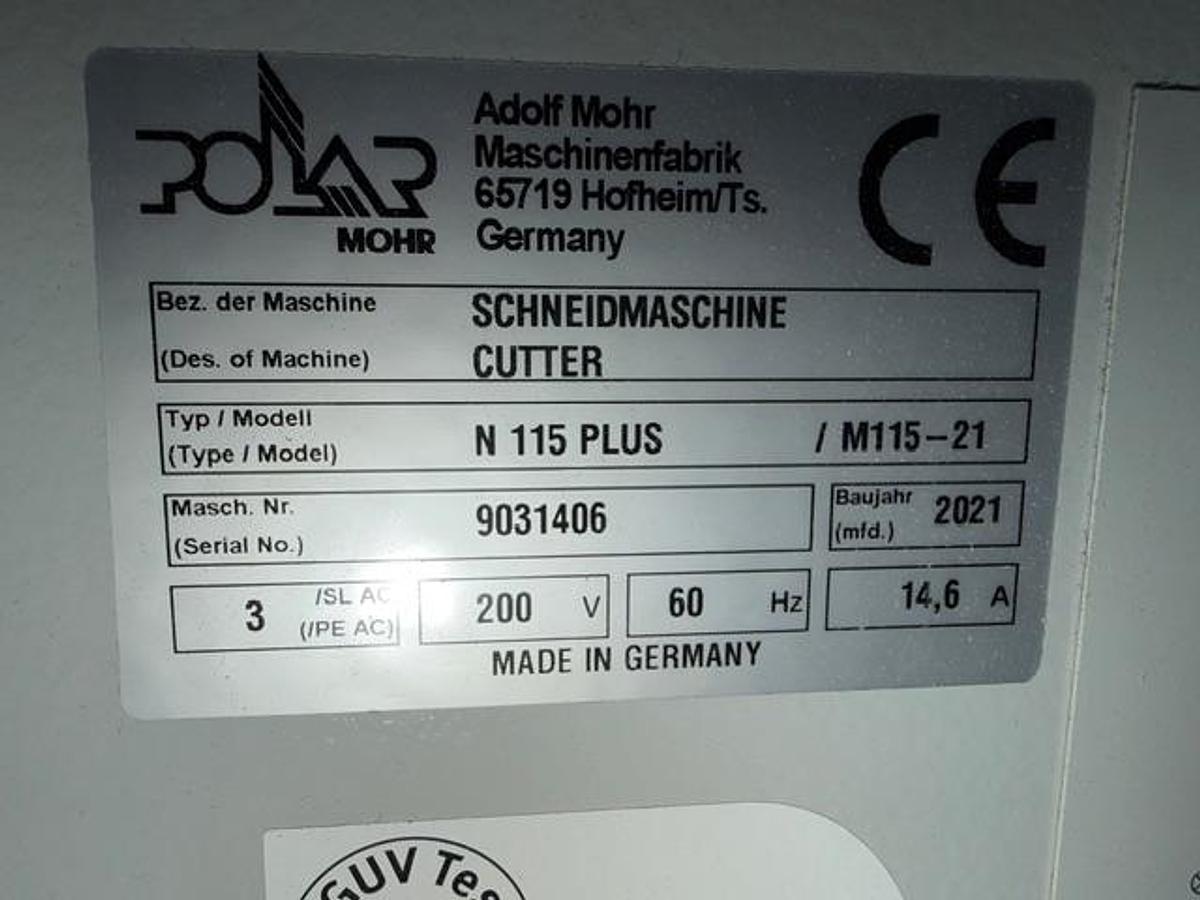

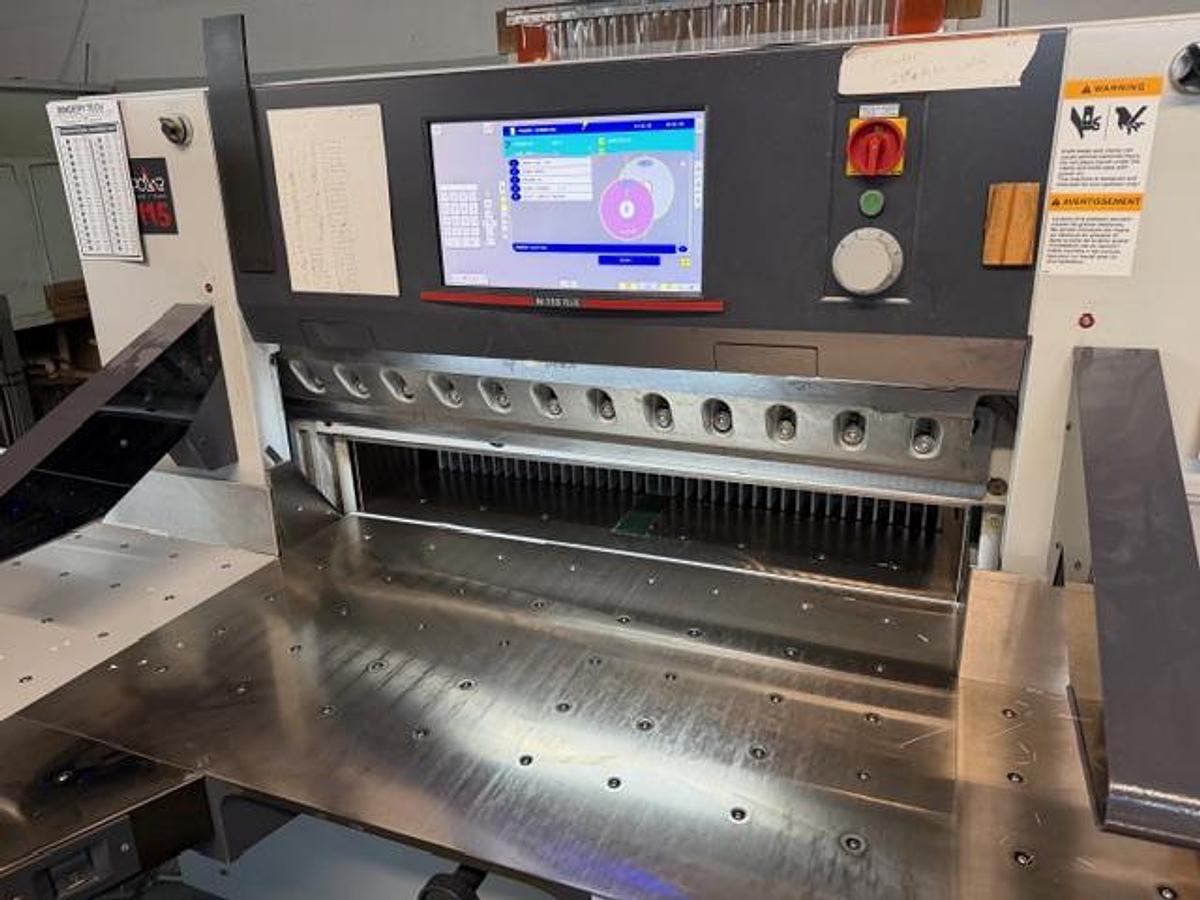

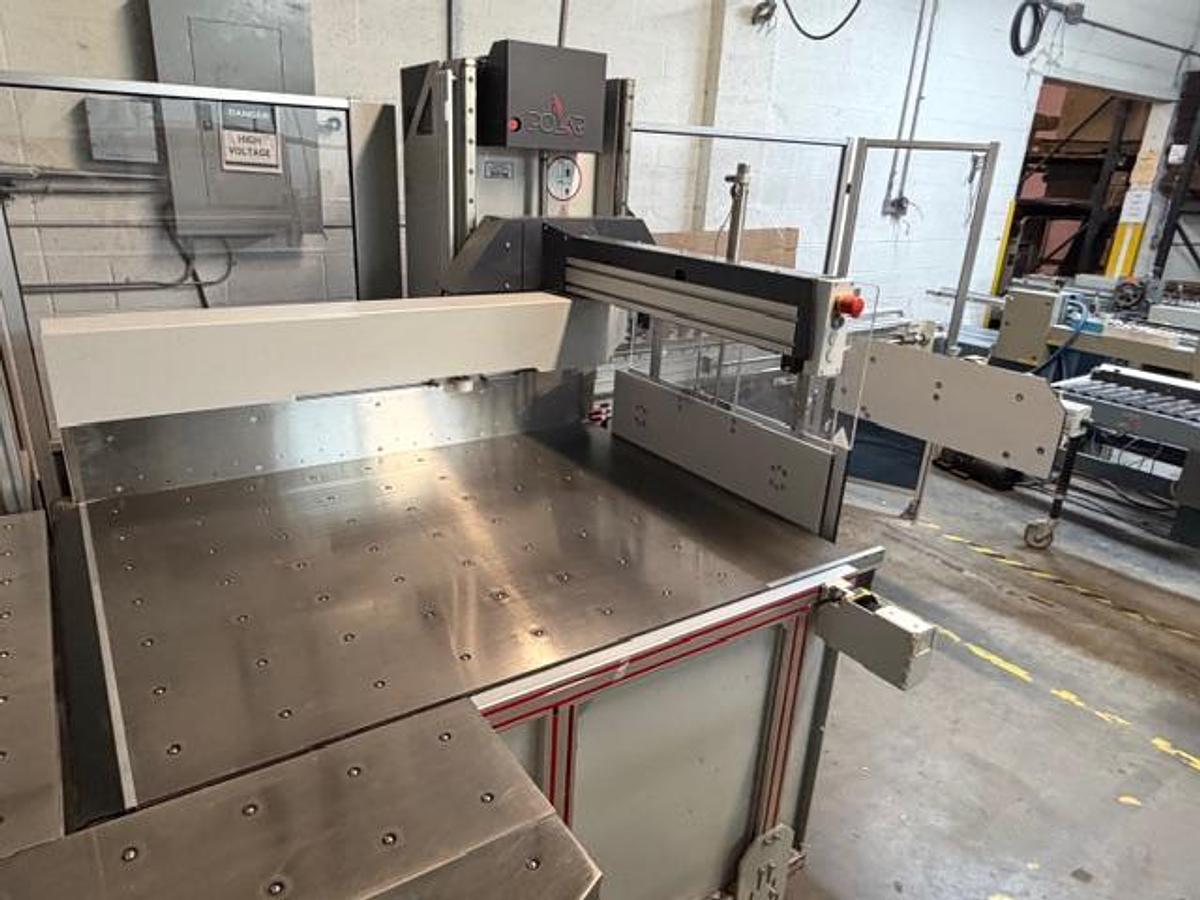

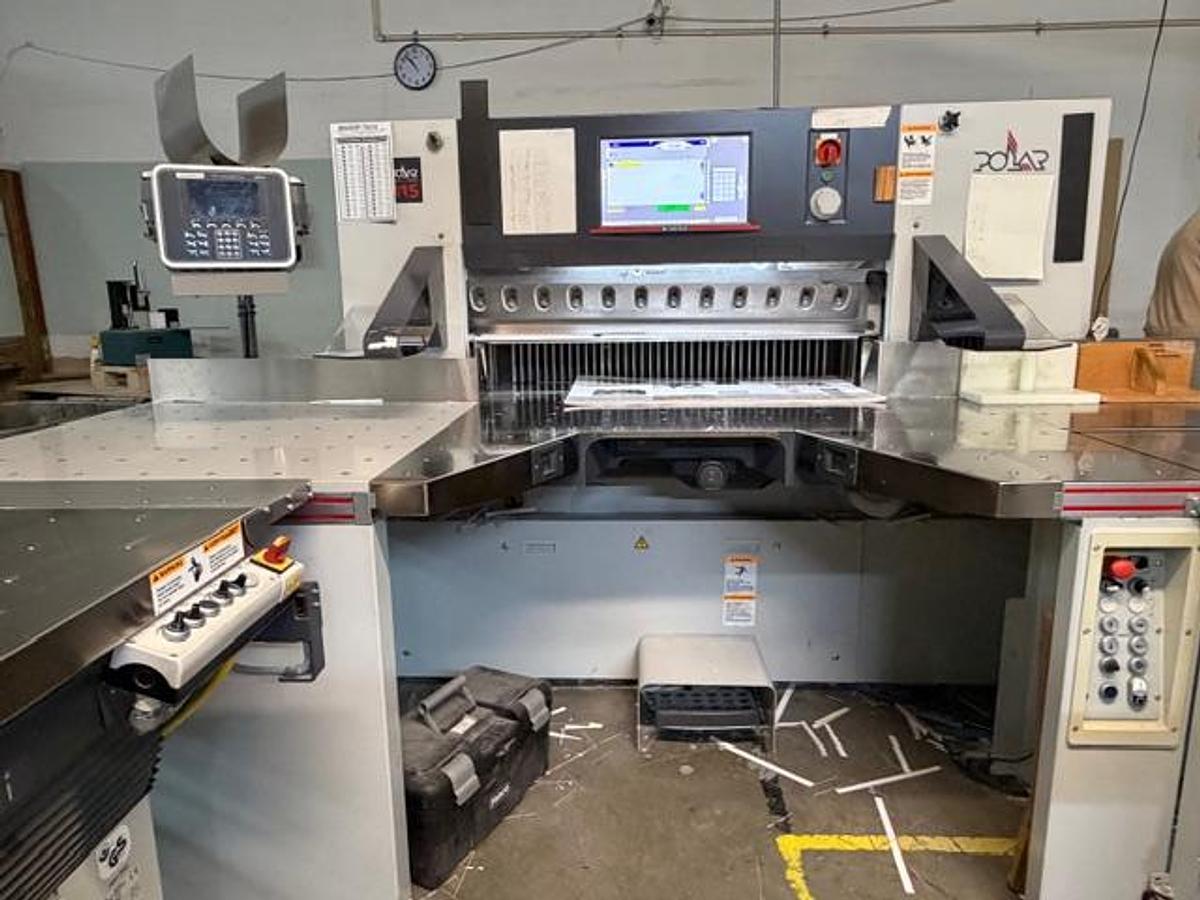

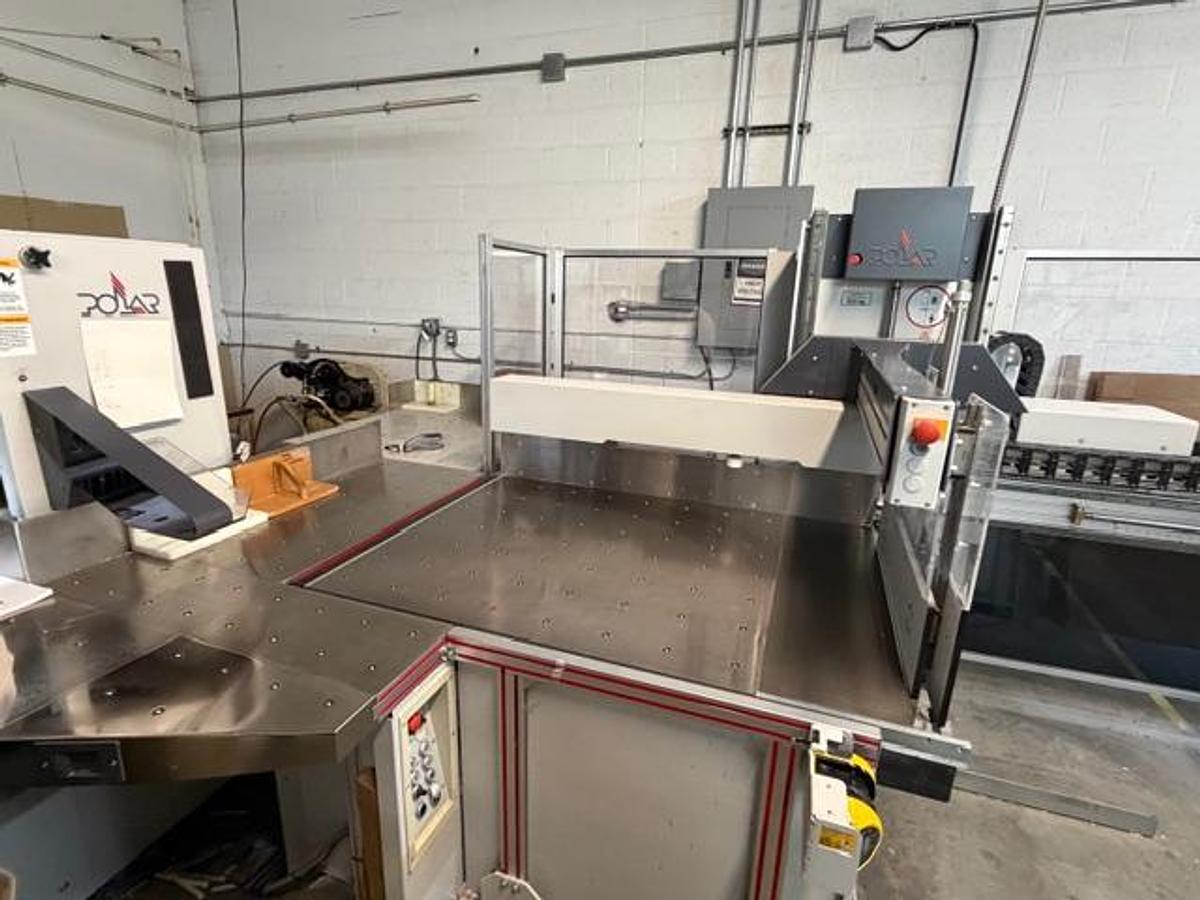

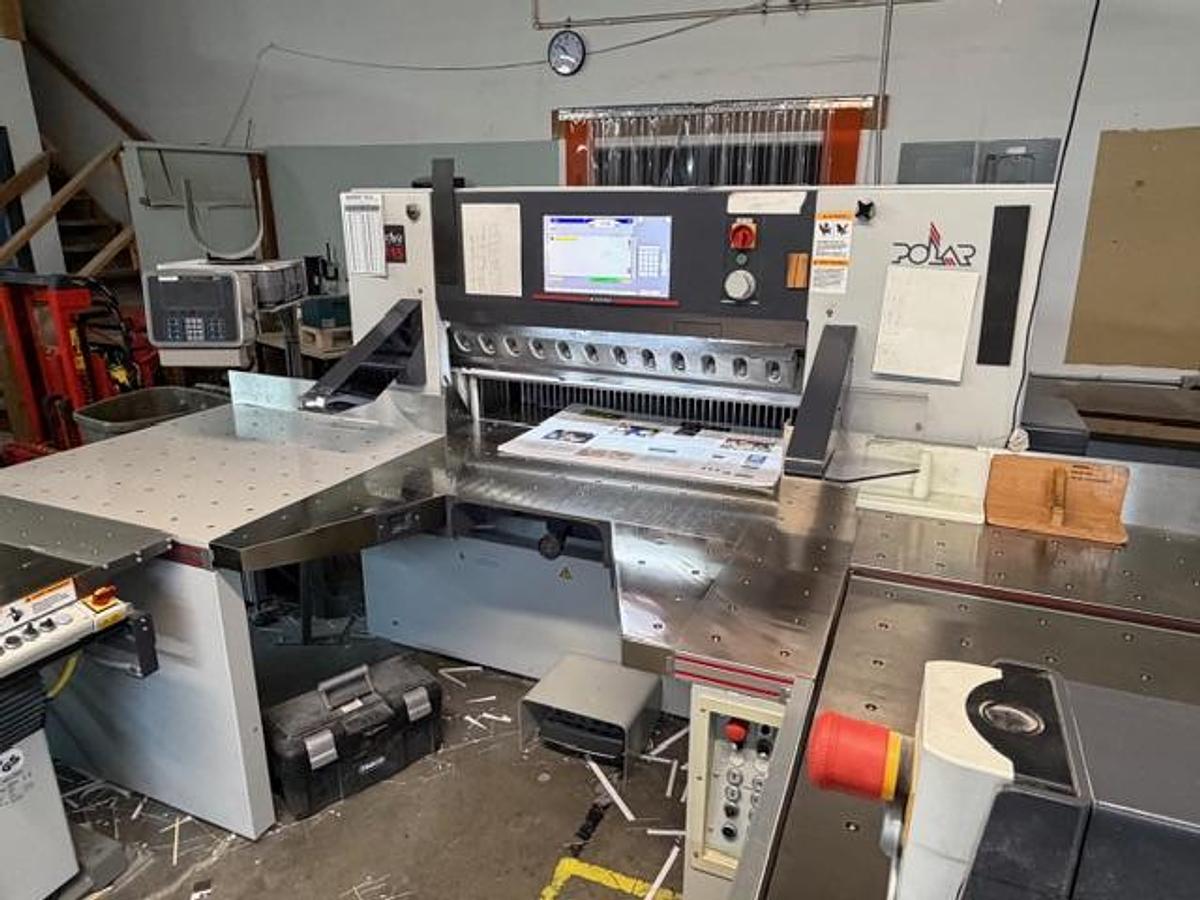

2021 POLAR N 115 PLUS high-speed guillotine cutter (45” class)

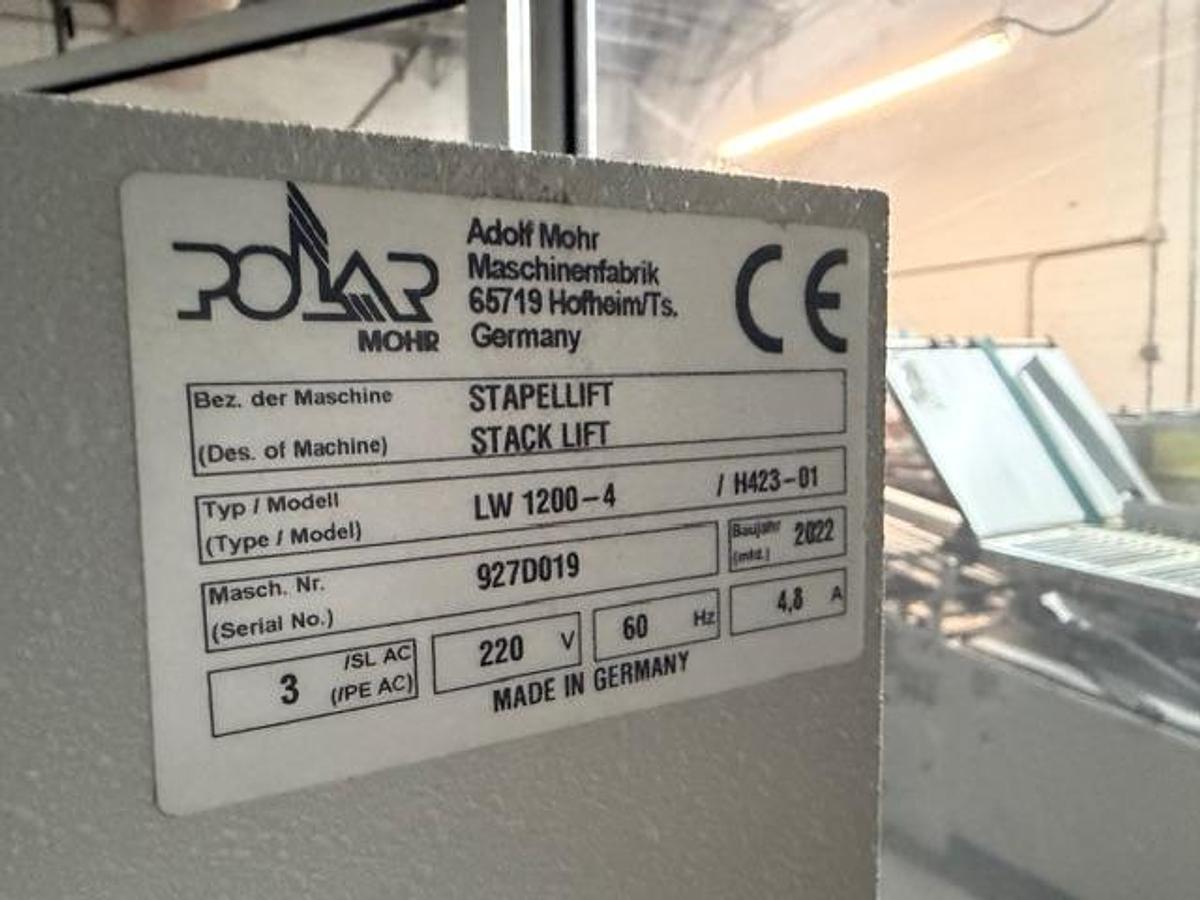

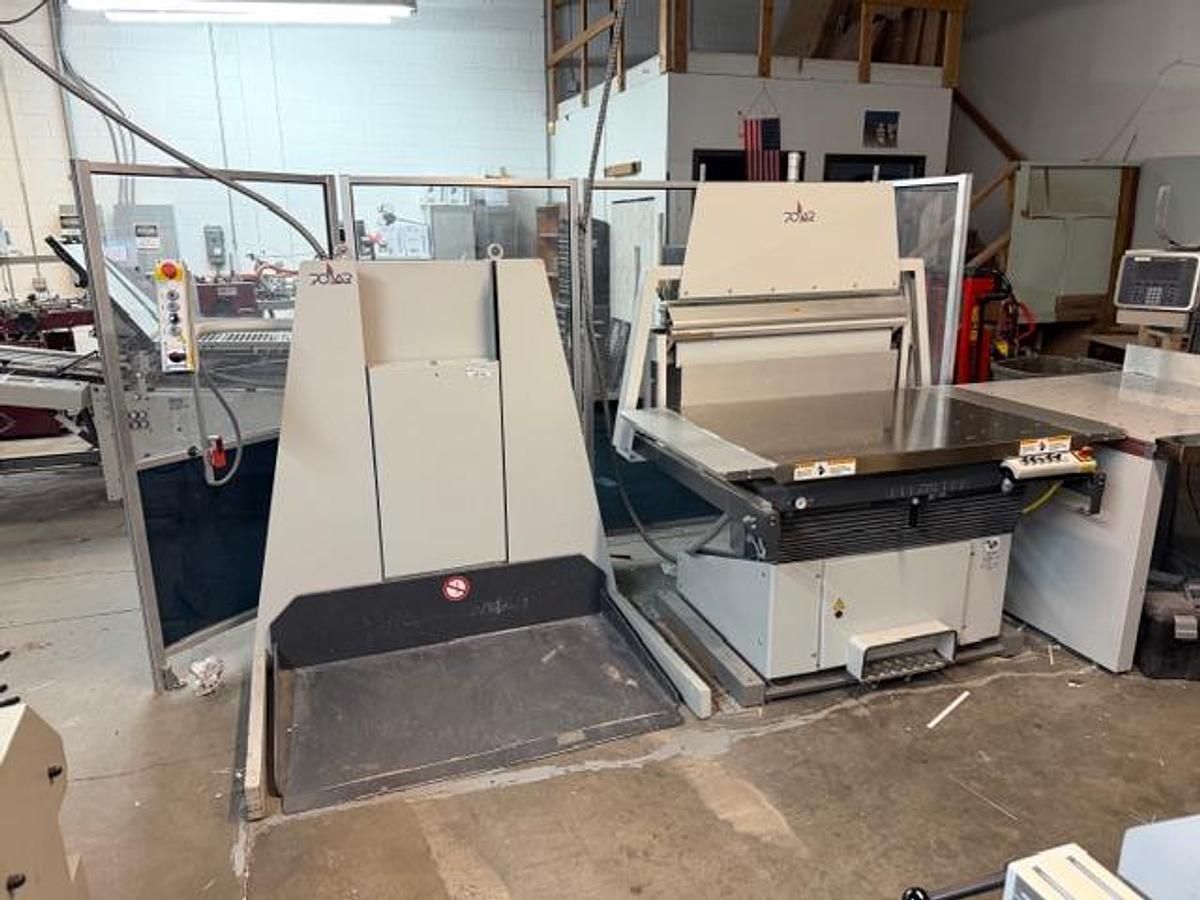

• LW 1200-4 lift (1,200 kg capacity, ergonomic loading) Age: 2022

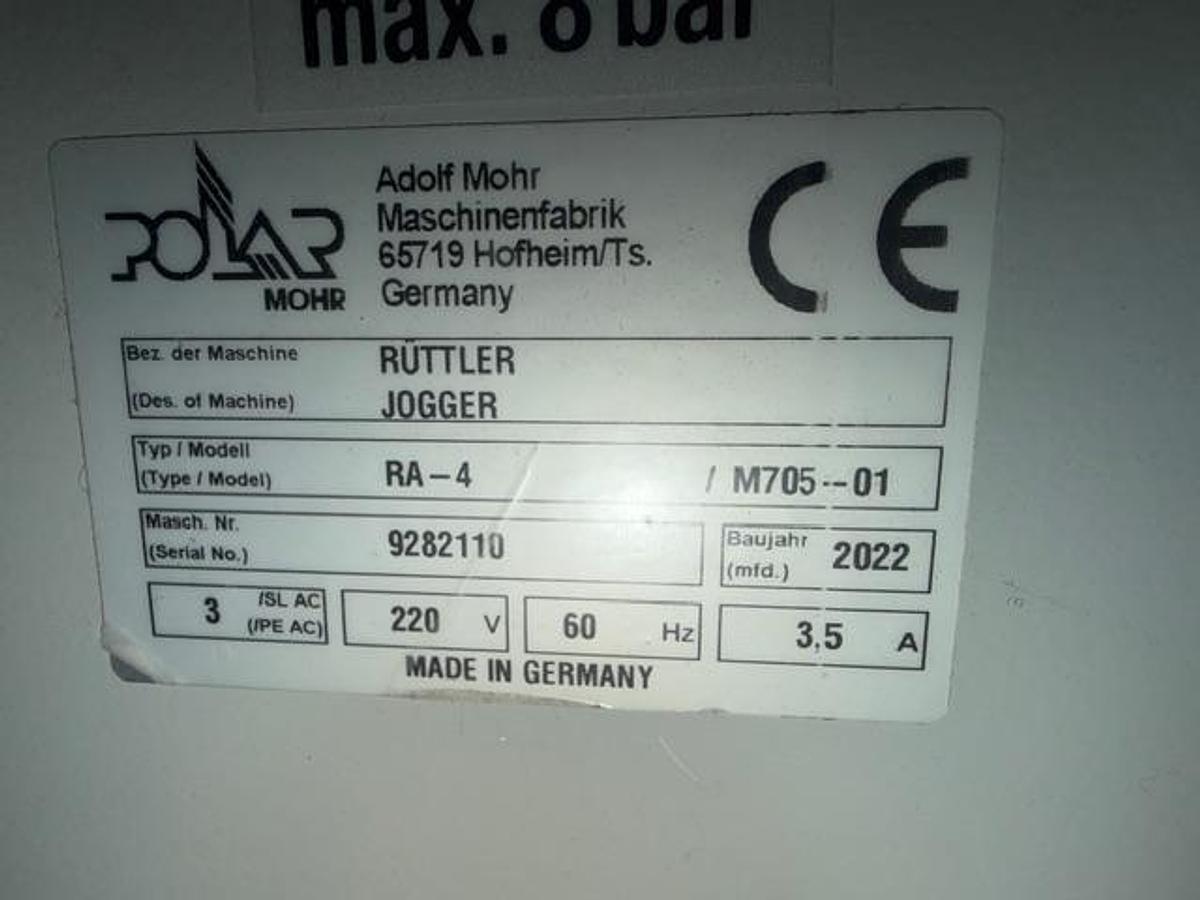

• RA-4 jogger (stack alignment)  Age: 2022

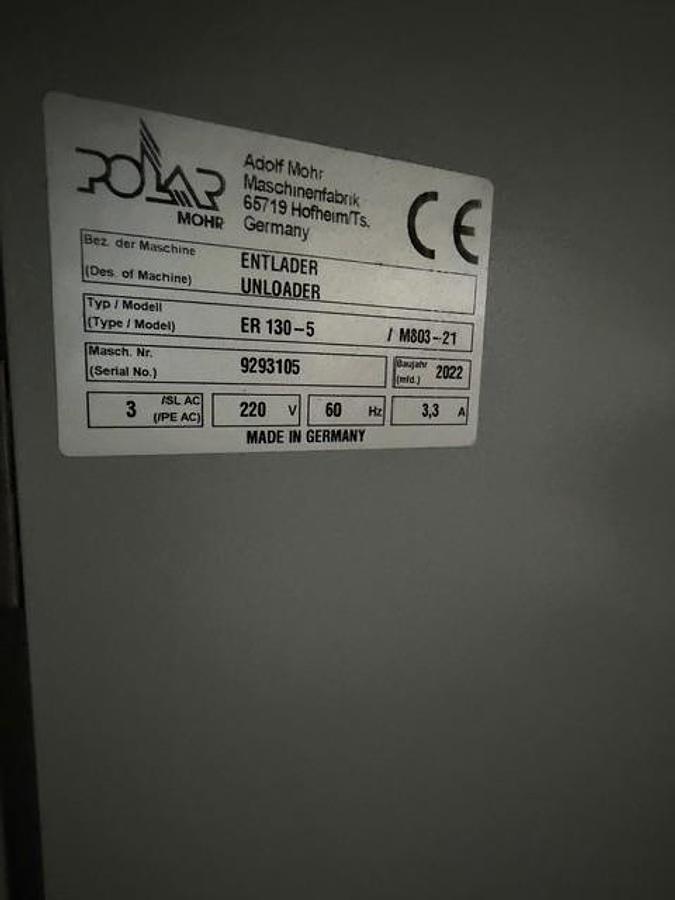

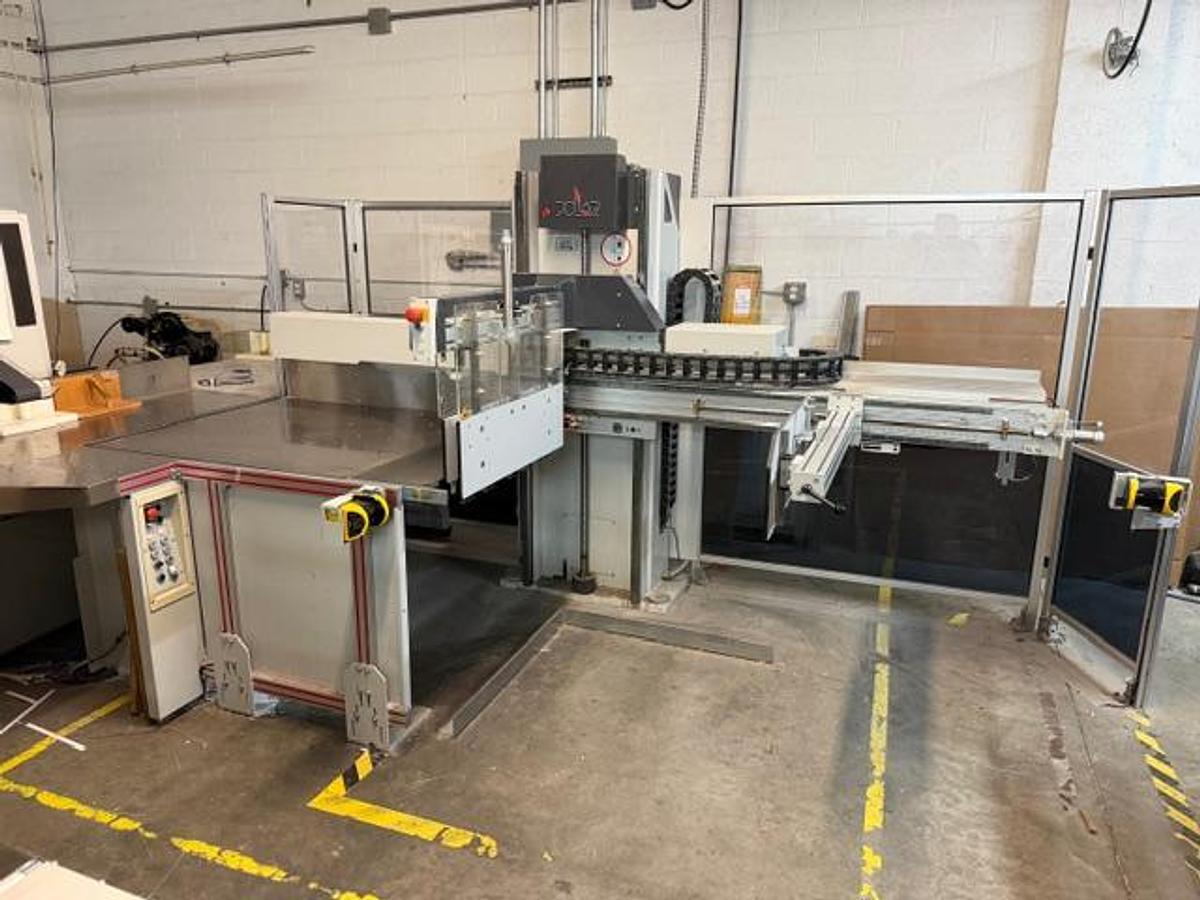

• ER 130-5 unloader / Transomat (automated stacking) Age: 2022

Designed for: 70 × 100 cm (40”) format class applications

Cutting width: 1,150 mm (45.28”)

Feeding depth: 1,150 mm (full sheet handling capability)

Max loading height: 165 mm (6.5” stack height)

Knife speed: up to 45 cuts per minute

Backgauge speed: up to 300 mm/sec (high-speed positioning)

Positioning accuracy: ±0.01 mm via DPS measuring system

Minimum cut size: 25 mm (manual & automatic)

Clamp pressure range: 150 – 4,500 daN (wide material range)

Safety clamp pressure: 30 daN (light pressure for sensitive jobs)

Drive system: self-locking worm gear with hydraulic clutch

Construction: one-piece cast iron frame for maximum stability

Knife system: OptiKnife with fine adjustment at lower dead center

Knife setup: HSS knives with electronic depth & thickness correction

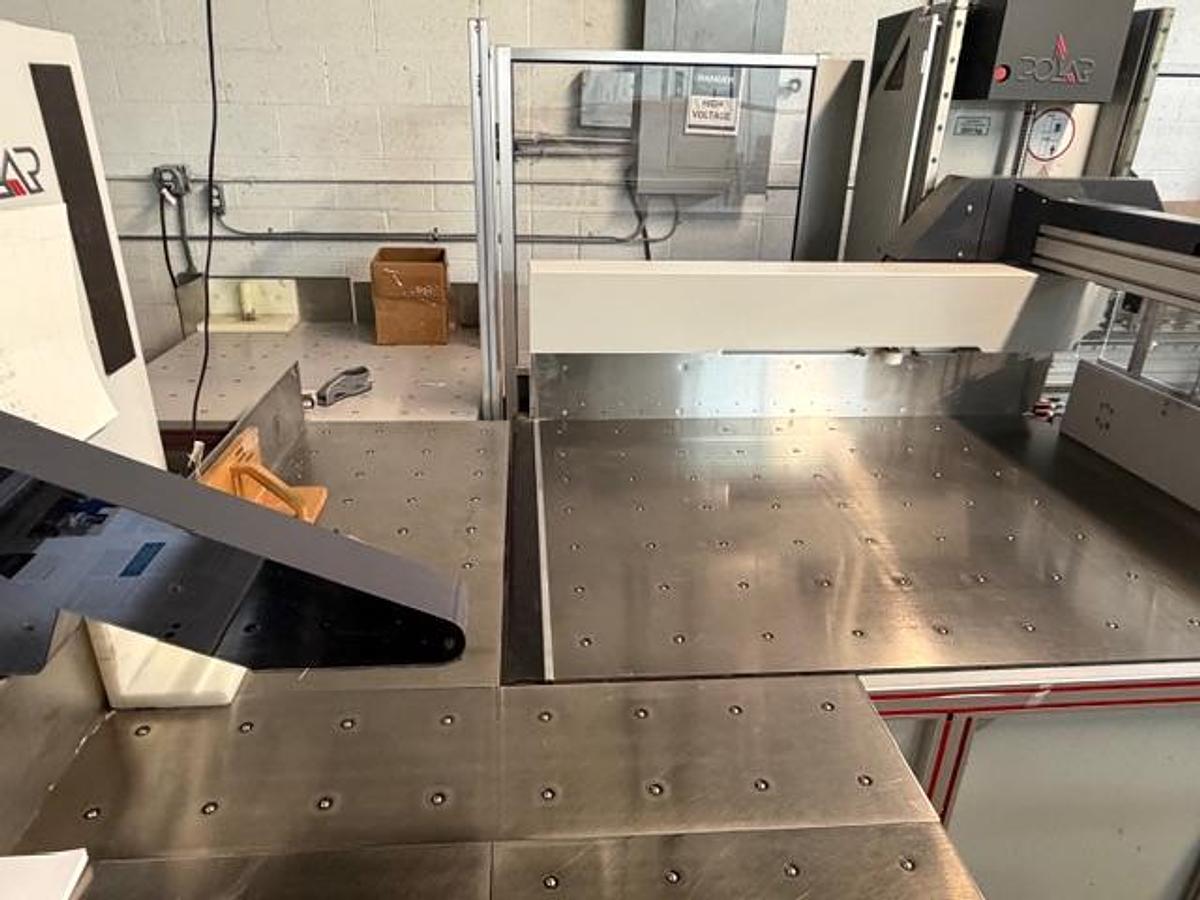

Table system: air-blown main table + additional air tables for easy handling

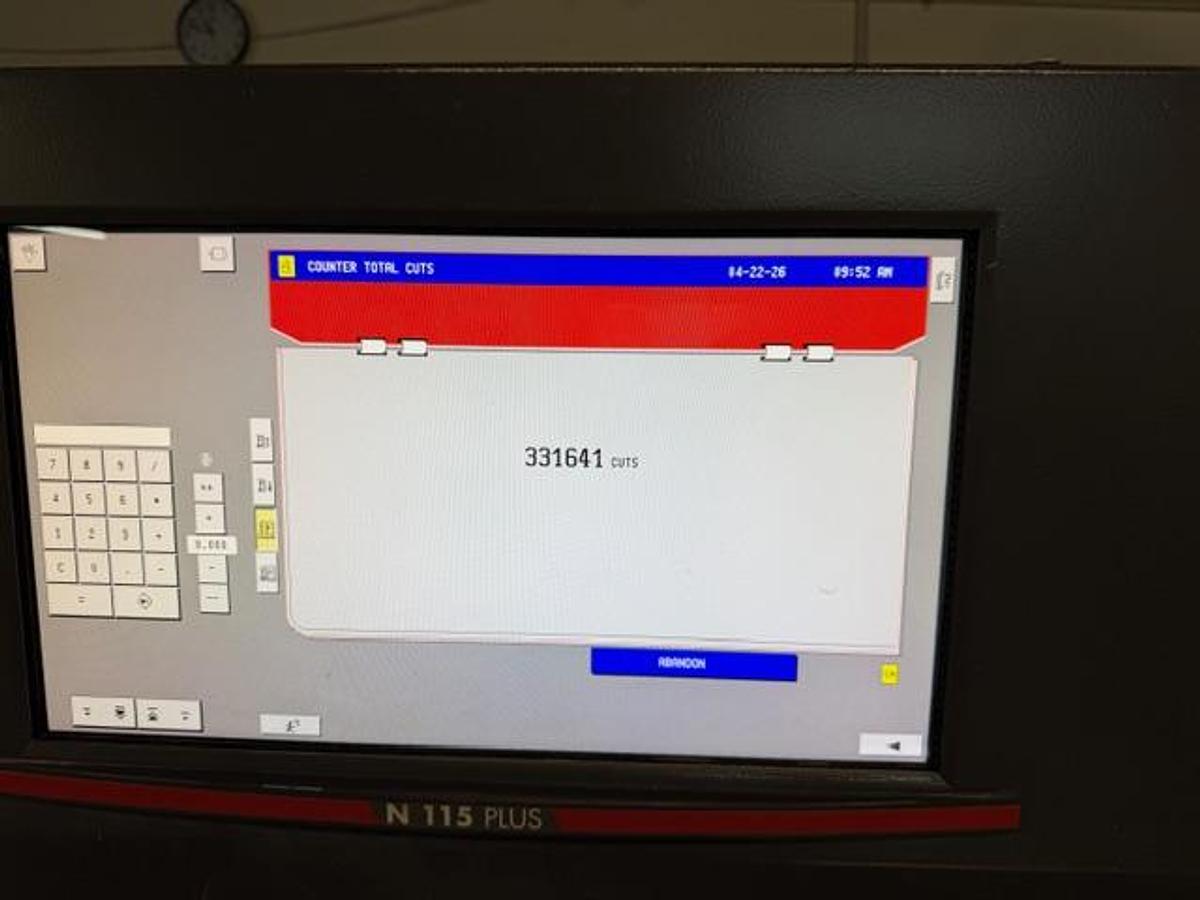

Control interface: 18.5” touchscreen with graphical programming

Software: programmable cutting sequences + block programming + Compucut ready

Program storage: ~1,998 cutting programs with job labeling

Automation features: automatic cut release, repeat calculator, programmable clamp timing

Electrical: 220V / 60Hz, approx. 4.5 kVA power consumption

Machine weight: ~3,230 kg (7,100 lbs)

Safety system: IR light curtain, two-hand cut release, CE & GS certifie
