Used 2019 Bobst Expert Fold 110-A2 w/ Speedway 2 and 4/6 corner
Used 2019 Bobst Expert Fold 110-A2 w/ Speedway 2 and 4/6 corner
Contact us for price
Description

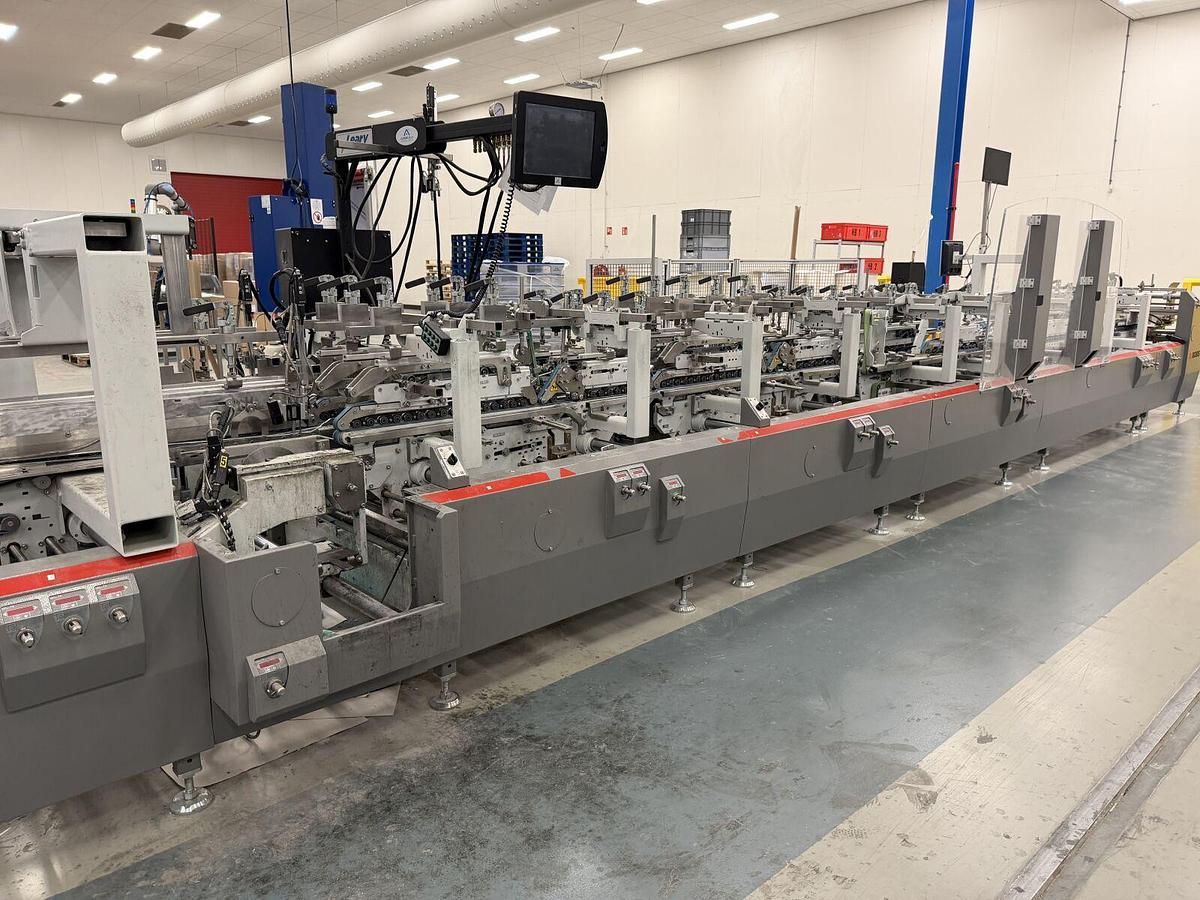

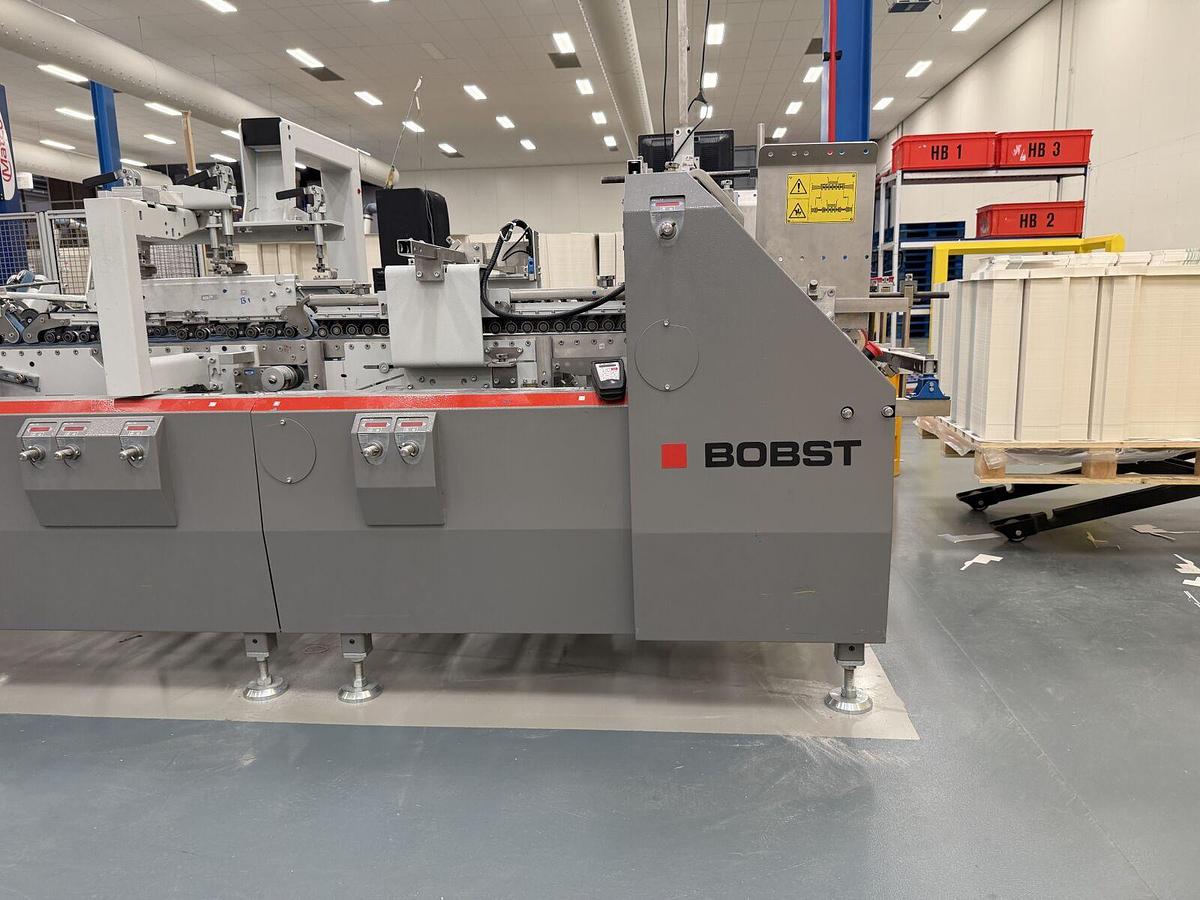

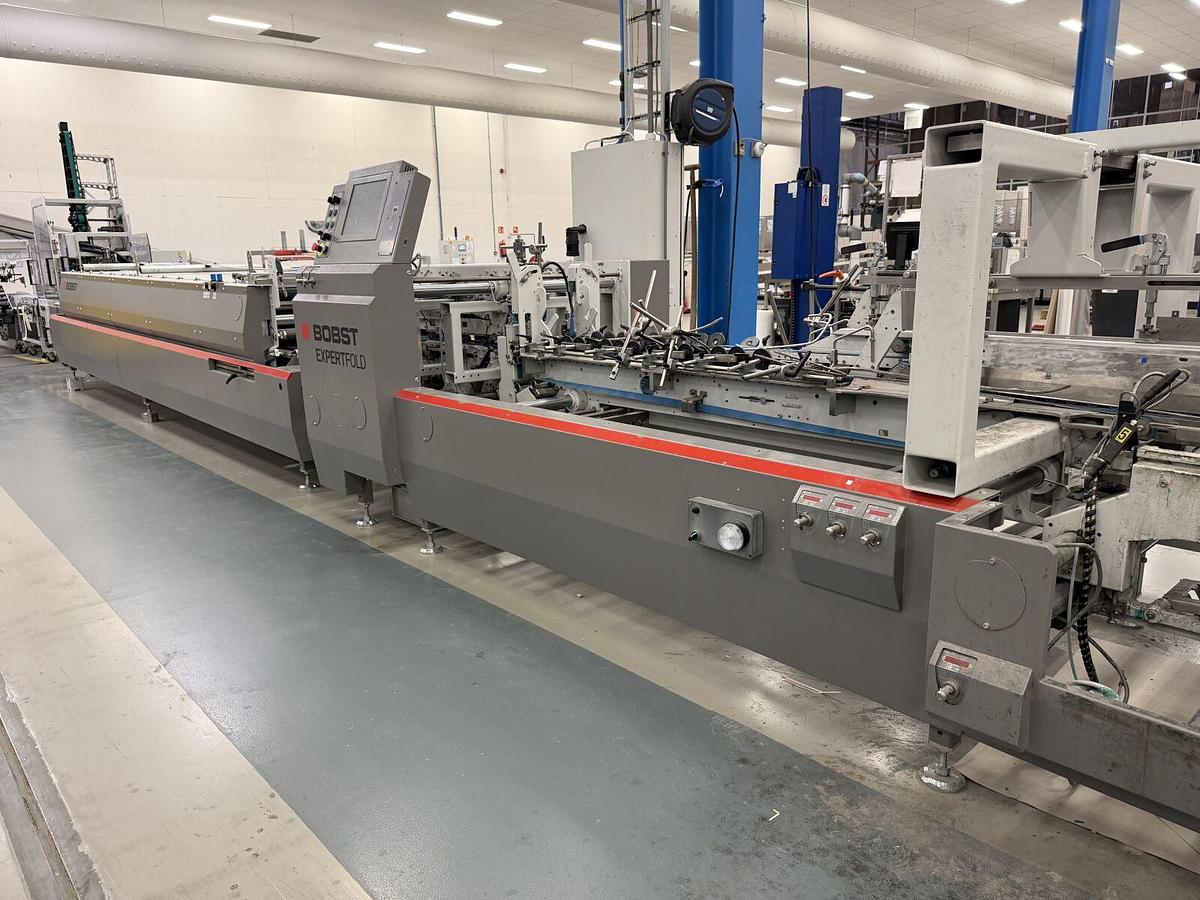

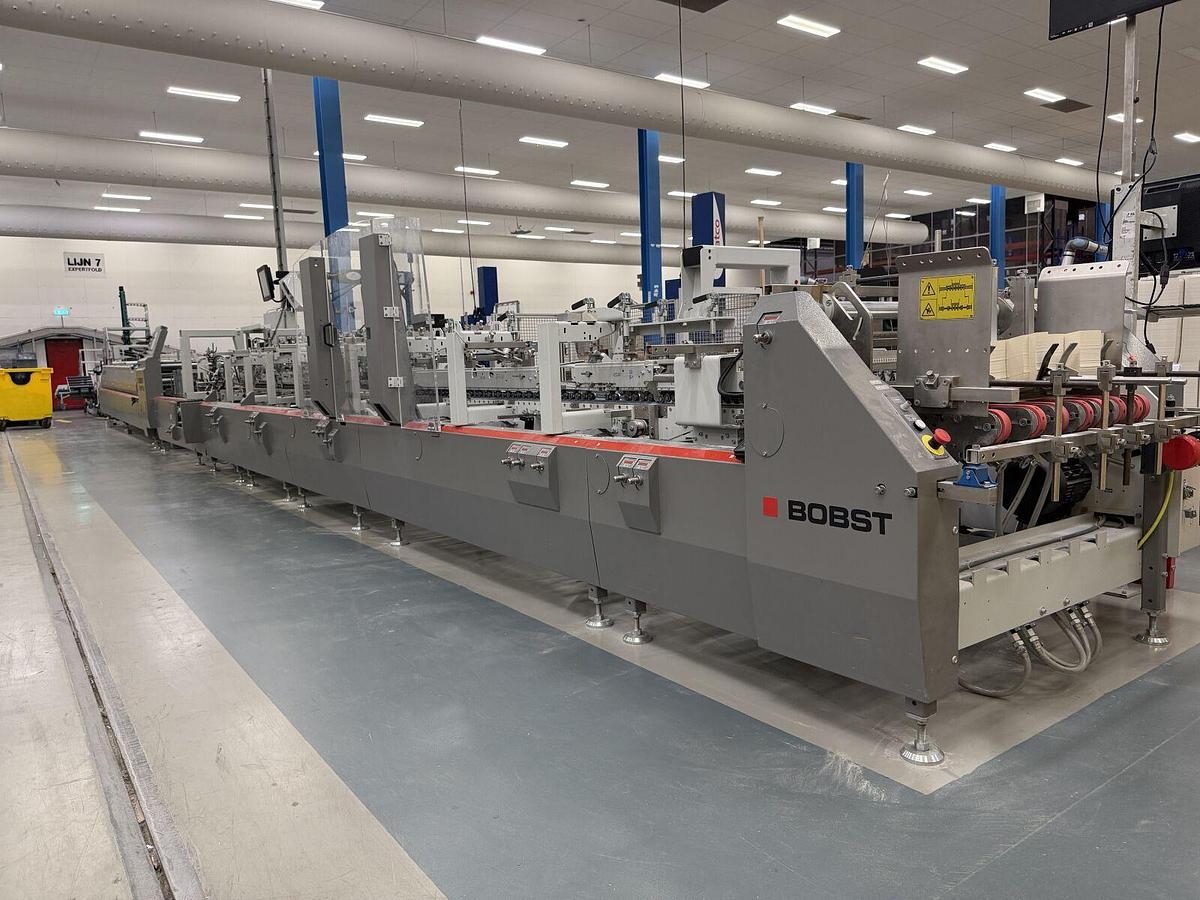

2019 BOBST EXPERTFOLD 110-A2 – High-Speed Automatic Folder Gluer with SPEEDWAVE 2 and 4/6-Corner Capability
2019 Bobst EXPERTFOLD 110-A2 high-performance automatic folder gluer equipped with SPEEDWAVE 2 technology and 4/6-corner folding capability. Designed for high-speed production of folding cartons and specialty packaging, this versatile folder gluer handles straight-line, crash-lock bottom, and complex 4- and 6-corner carton configurations. Featuring precision folding, accurate glue application, and advanced carton handling technology, the EXPERTFOLD 110-A2 delivers exceptional productivity, consistent folding accuracy, and reliable performance. Ideal for commercial folding carton manufacturers and packaging converters seeking a versatile, high-quality BOBST folder gluing solution.
Specifications
| Manufacturer | Bobst |
| Model | Expert Fold 110-A2 w/ Speedway 2 and 4/6 corner |
| Year | 2019 |
| Condition | Used |
| Stock Number | 00112 |
| Technical Details: | Speed: Up to 450m/min - Max production speed (4/6 corner) up to 28,000 boxes/hr - Box styles: straight-line, crash-lock bottom and 4/6 corner Blank width min/max: 76mm - 1100mm - Blank length min/max: 60mm - 800mm - Fold-flat width min/max: 35mm - 890mm Processable materials: solid board/carton up to 800 gsm, corrugated board (simple fluting) N-F-E Flute - Max thickness of folded box: 12mm |

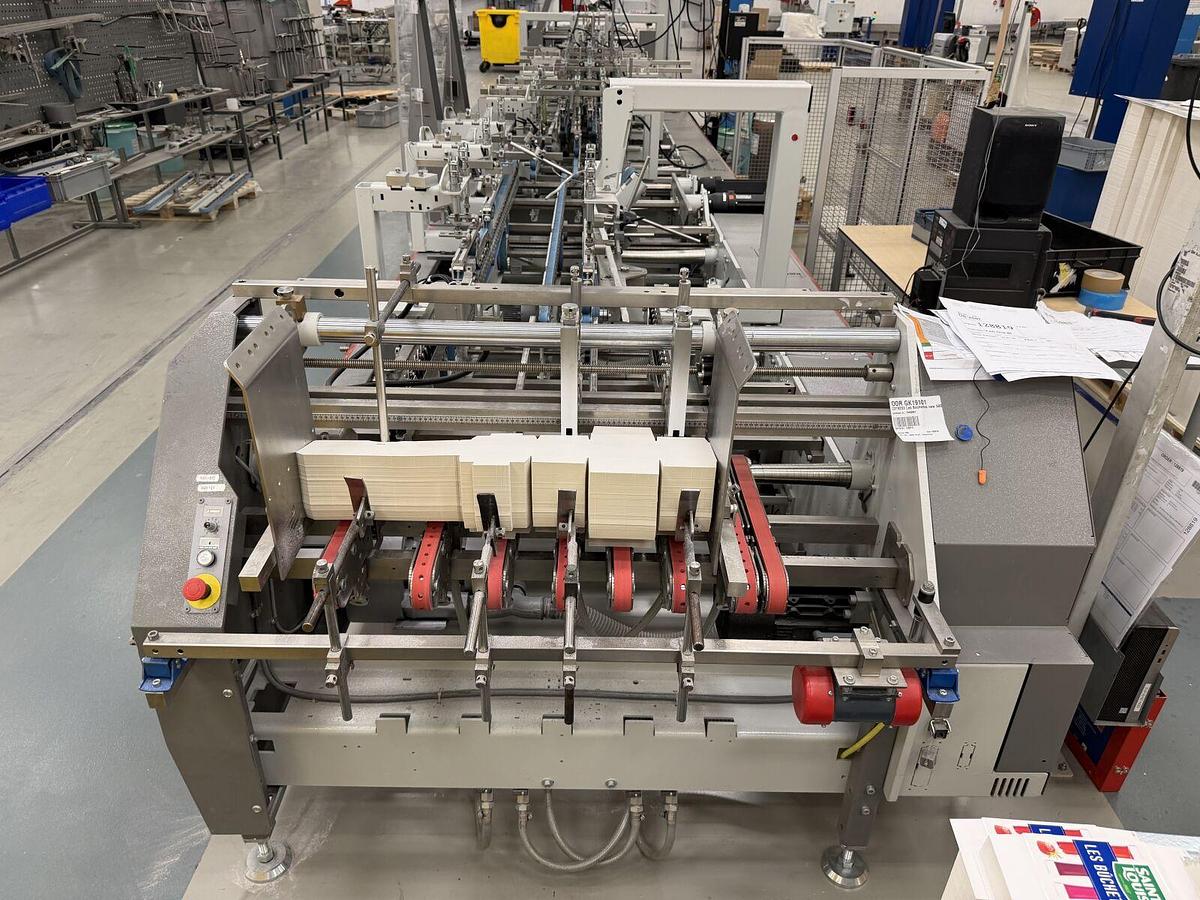

| Feeder: | Vacuum feeder (ACCUFEED) with blank alignment, Electric pile vibrator, blank suction device, independent upper roller track Max. blank pile height: 350mm |
| Pre-breaker: | For straight-line and crash-lock bottom production, Additional pre-breaker with Leary code reader, adjustable pre-breaking angle, Central conveyor, long outlet conveyor for crash-lock bottom/ double-wall boxes |
| Crash-lock Bottom module: | Folding/gluing of standard and reinforced crash-lock bottom boxes, Helical folding guides, suction guides for 4/6 corner flaps, Upper extrusion station fitted |
| Gluing unit: | Glue wheel with double scraper, removable glue basin Leary nozzle gluing system: 8 channels, 4 glue guns Glue track width: 3mm |

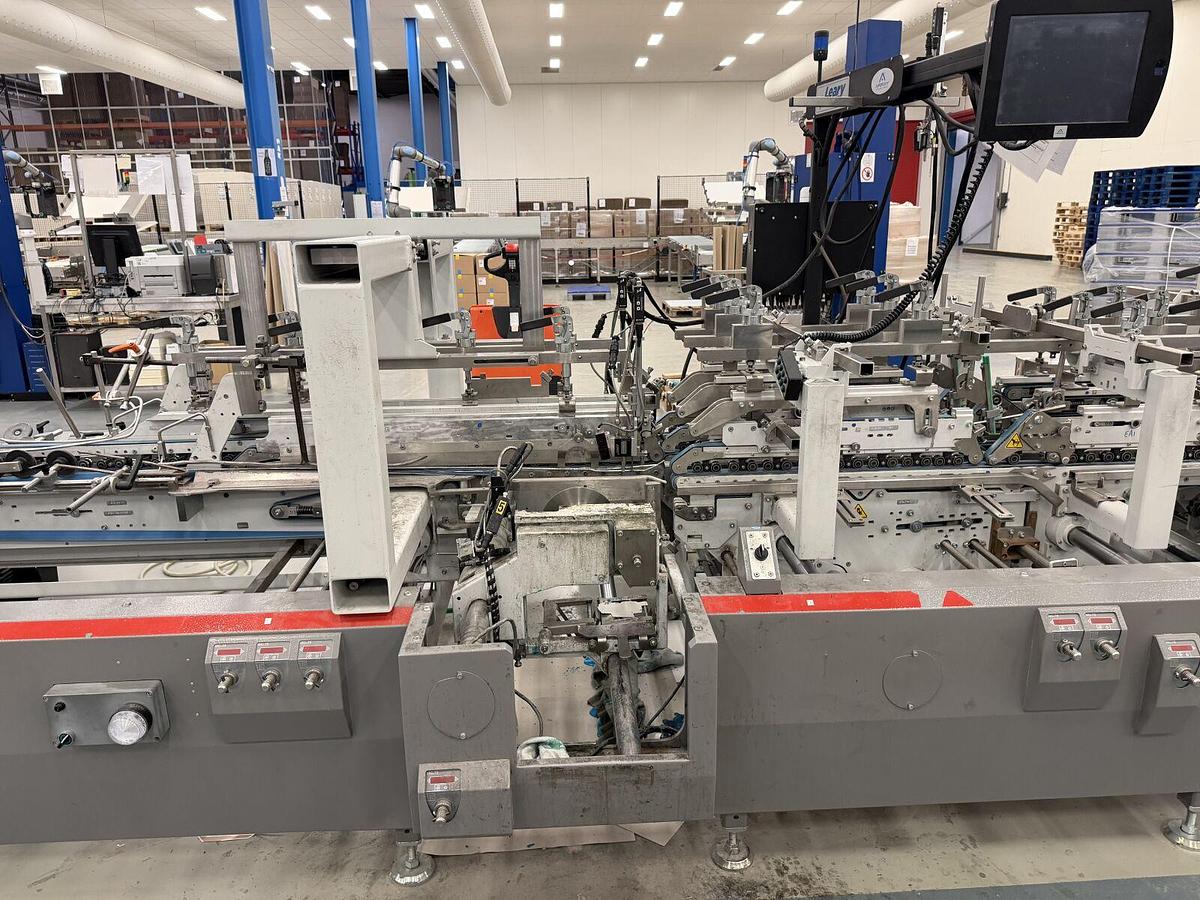

| Folding section: | A2 module: rotary hooks (servo motors), auxiliary folder, flexible folding guides, Speedwave 2 module Folding belts: 2 x 10mm/ 2 x15mm / 2 x 30mm, Minimum folding device from 35m, width Device for pitch regulaton |

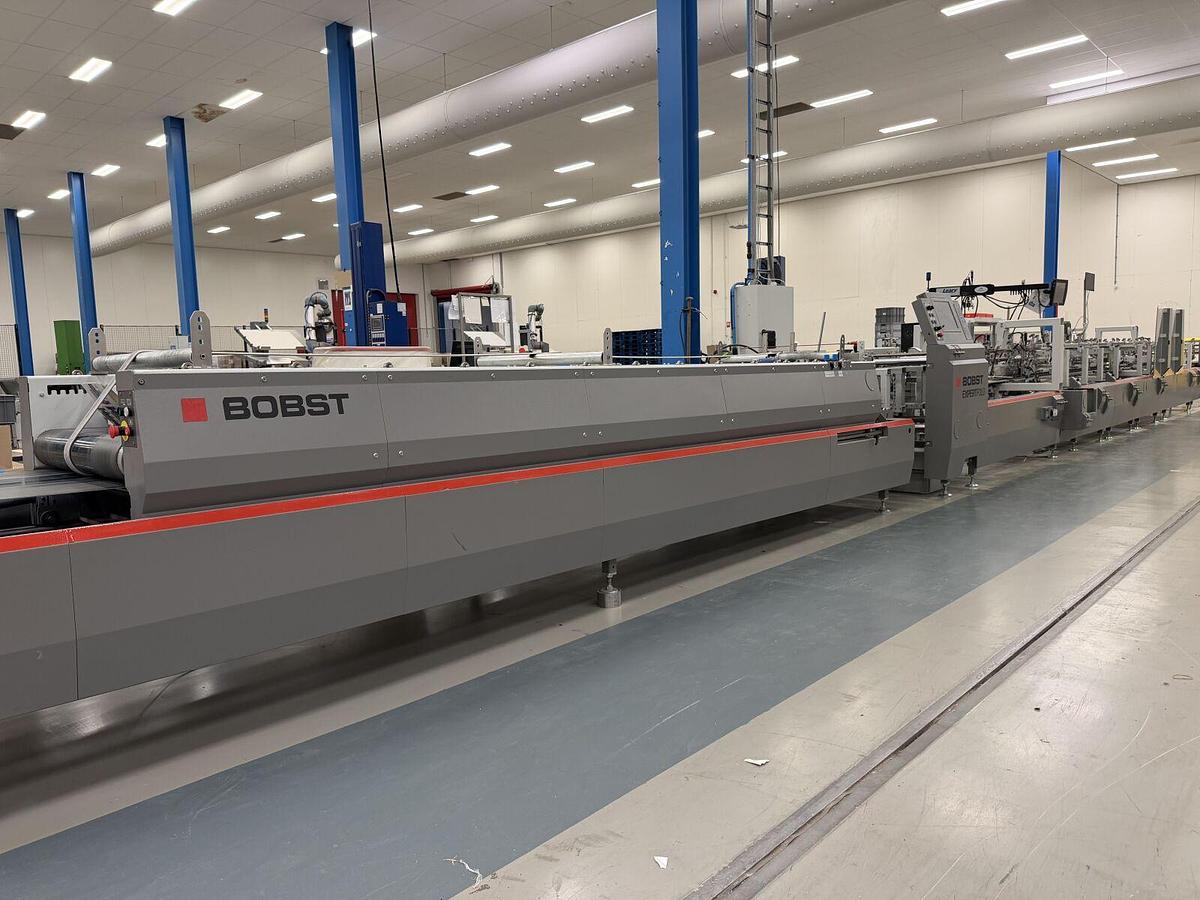

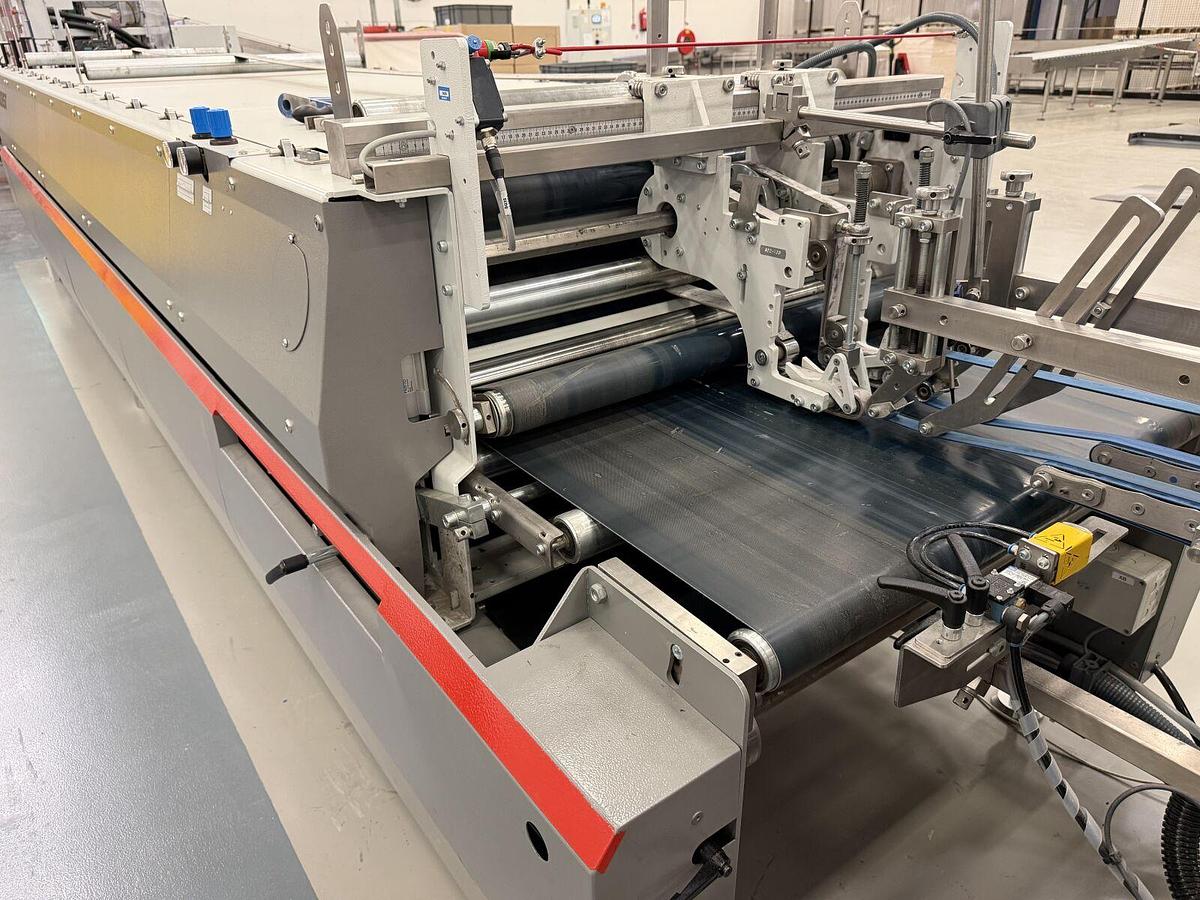

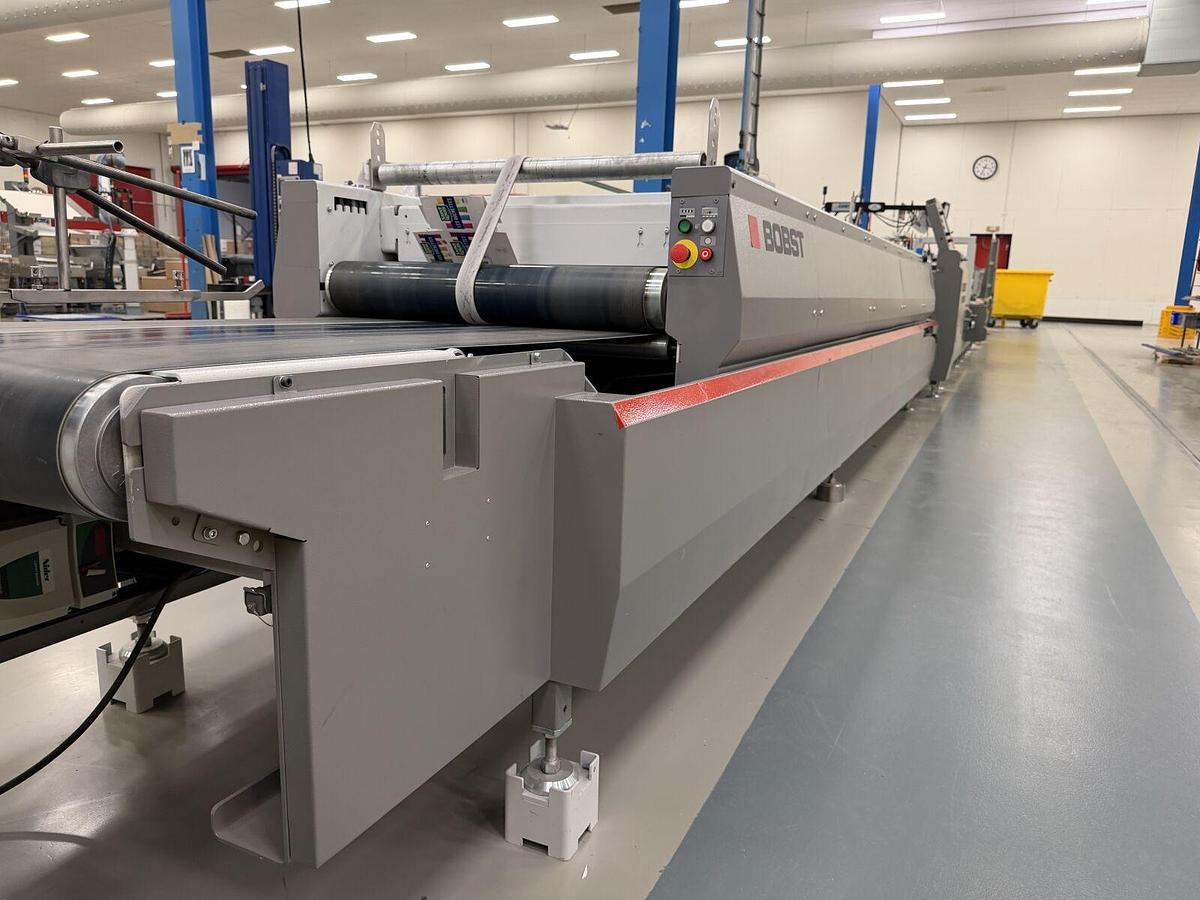

| Transfer & Delivery: | Motorized transfer section, independent drive Extended delivery: total length 6,535mm, pressure length 4,650mm, belt width 900mm, Automatic pressure system (2 zones), box stream regulator Upper pressure belt (for crash-lock bottom boxes), extending pressing belt |
| Inspection & Ejection: | Barcode reader, Leary code reader Flipper ejector for faulty boxes, tracked via HMI |

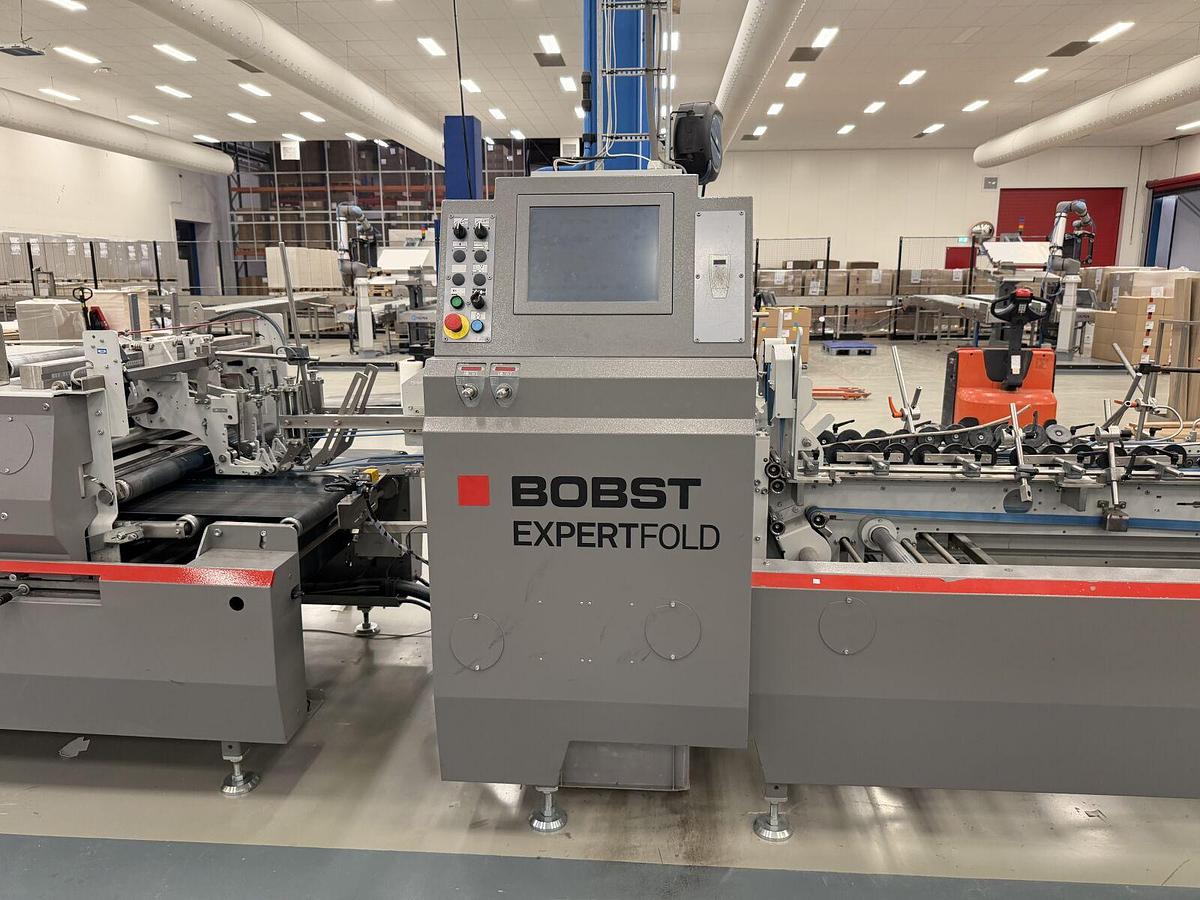

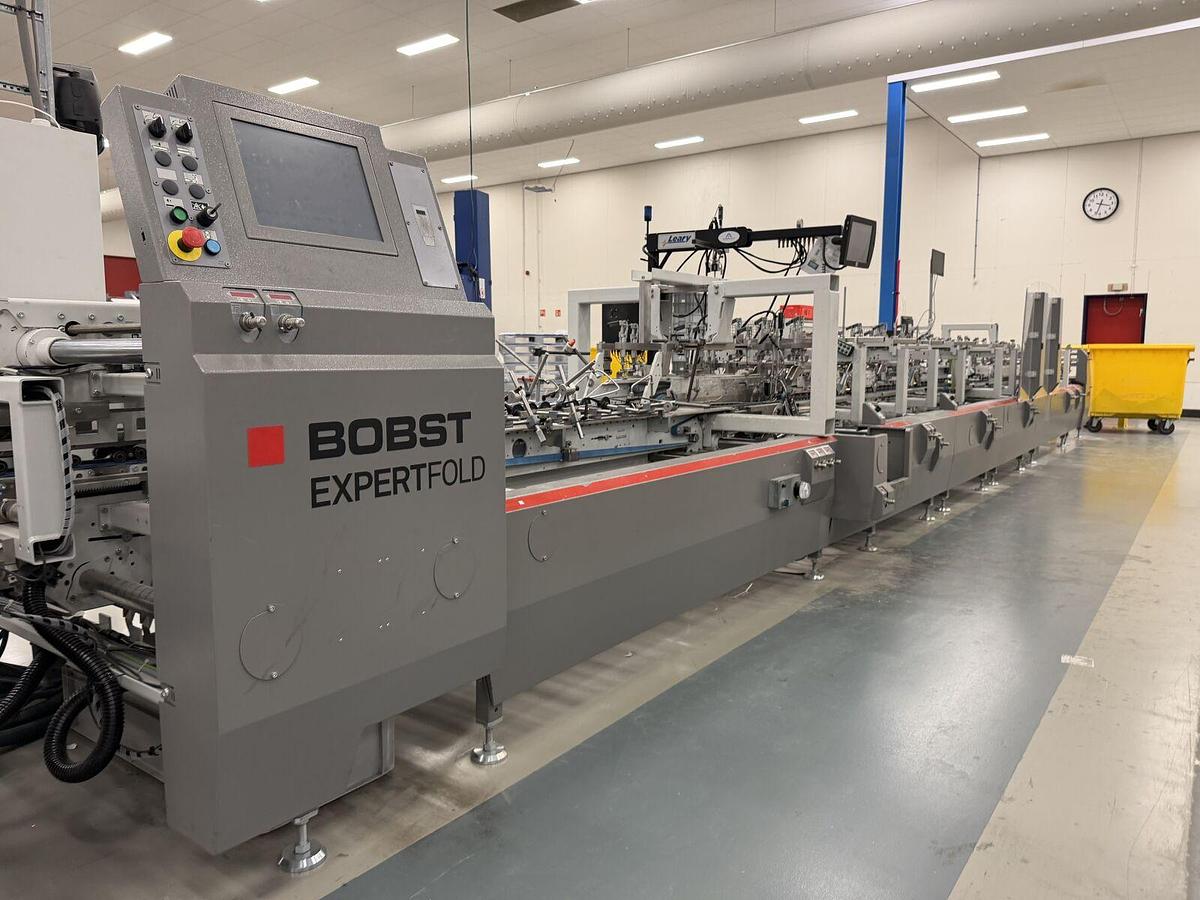

| Control & Automation: | Autoset - Fully automatic format setting (CSM CUBE motorized), CUBE control system (Control Unit Bobst Electronic), 15” color touchscreen Storage of up to 5,000 job settings, formats diagram, Remote control, auxiliary control desks at feeder and delivery, Connect Ready (CR) equipment |
